Risefull Rated 8m³/h Horizontal Stainless Steel Multistage Centrifugal Pump

Product Description Performance Curve ModelPowerkWMax Flowm³/hMax HeadmRated Point(Flow@Head)ImpellerQtyCHM8-20.7513.2208m³/[email protected]³/[email protected]³/[email protected]³/h@45m5Working Condition 1. Liquid Temperature: -15~105°c2. Maximum Amb......Keywords:Risefull Rated 8m³/h Horizontal Stainless Steel Multistage Centrifugal Pump - Buy Stainless Steel Centrifugal Pump horizontal Centrifugal Pump industry And Water Boosting industry Stainless Steel Centrifugal Pump stainless Steel Impeller Pump Low Noise Centrifugal Pump multistage Stainless Steel Pump risefull 8m³/h Horizontal Pump high Pressure Centrifugal Pump commercial Buildings Pump metal And Equipment Pump Product on Fujian Risefull Pump Co., Ltd.

Product Description

Performance Curve

Model	Power kW	Max Flow m³/h	Max Head m	Rated Point (Flow@Head)	Impeller Qty
CHM8-2	0.75	13.2	20	8m³/h@18m	2
CHM8-3	1.1	13.5	31	8m³/h@27m	3
CHM8-4	1.5	13.5	40	8m³/h@35m	4
CHM8-5	2.2	13.8	51	8m³/h@45m	5

Working Condition

1. Liquid Temperature: -15~105°c

2. Maximum Ambient Temperature: +45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

l Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)

l Antifreeze Liquid (Main component: glycol)

l Mild corrosive liquid (PH 5- 9)

l Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)

5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.

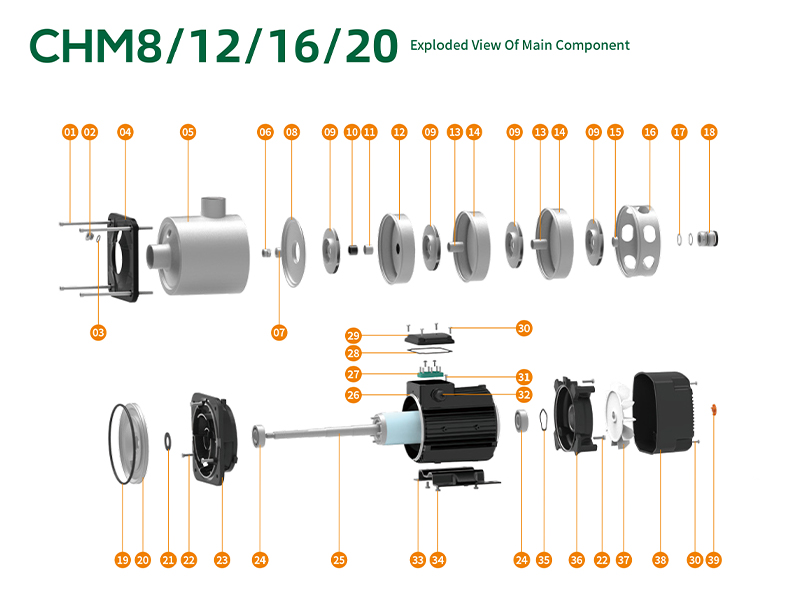

Component List

No.	Component	Material	No.	Component	Material	No.	Component	Material
01	Screw	SUS201	14	Diffuser	AISI304	27	Terminal Board	PBT
02	Drain Screw	AISI304	15	First Stage Location Sleeve	AISI304	28	Terminal Box Washer	NBR
03	O-ring	EPDM	16	Oulet Diffuser	AISI304	29	Terminal Box	Aluminium
04	Pump Body Cover	HT200	17	Flat Gasket	AISI304	30	Screw
05	Pump Body	AISI304	18	Mechanical Seal	Graphite +SIC	31	Screw
06	Locknut	AISI304	19	O-ring	EPDM	32	Cable Fairlead	PP
07	Final Stage Location Sleeve	AISI304	20	Lining Disk	AISI304	33	Bottom Support
08	Inlet Diffuser	AISI304	21	Drop Guard	NBR	34	Screw
09	Impeller	AISI304	22	Screw	SUS201	35	Spring Washer
10	Tungsten Steel Shaft Sleeve	Tungsten Steel	23	Bracket	HT200	36	Back Cover	HT200
11	Shaft Sleeve	AISI304	24	Bearing		37	Fan	ABS
12	Support Diffuser	AISI304	25	Rotor	Welding Shaft with AISI304	38	Fan Cover	PA6
13	Shaft Sleeve	AISI304	26	Motor	PBT	39	Rubber Logo	Silicone
