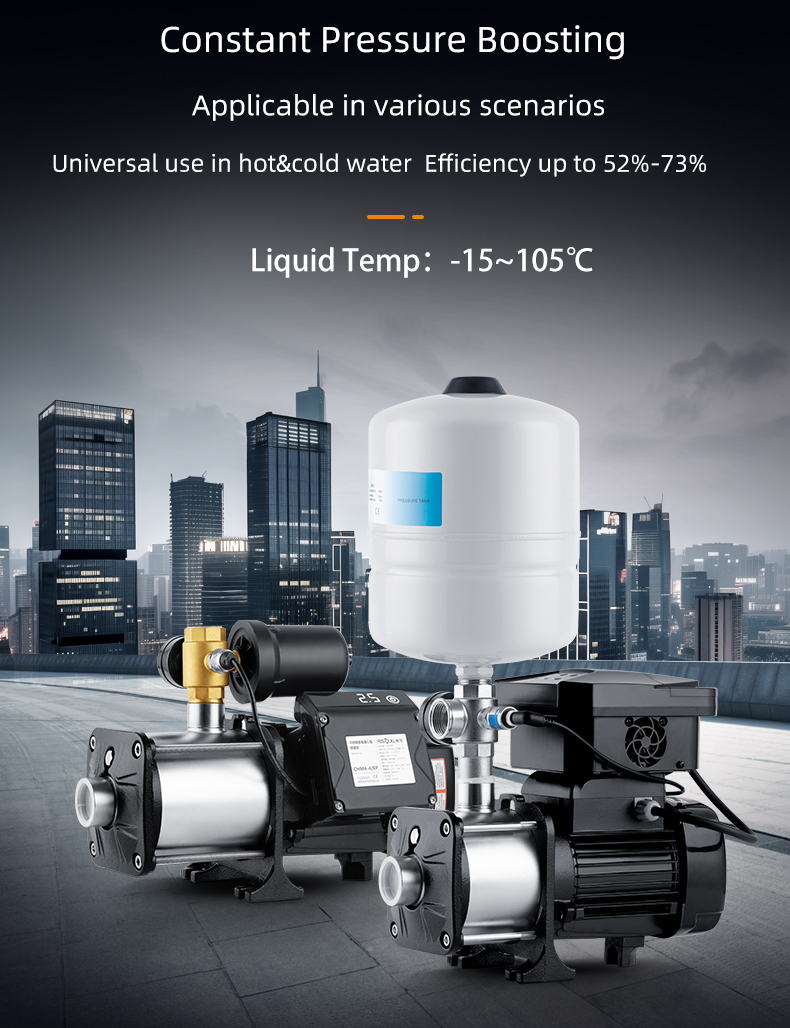

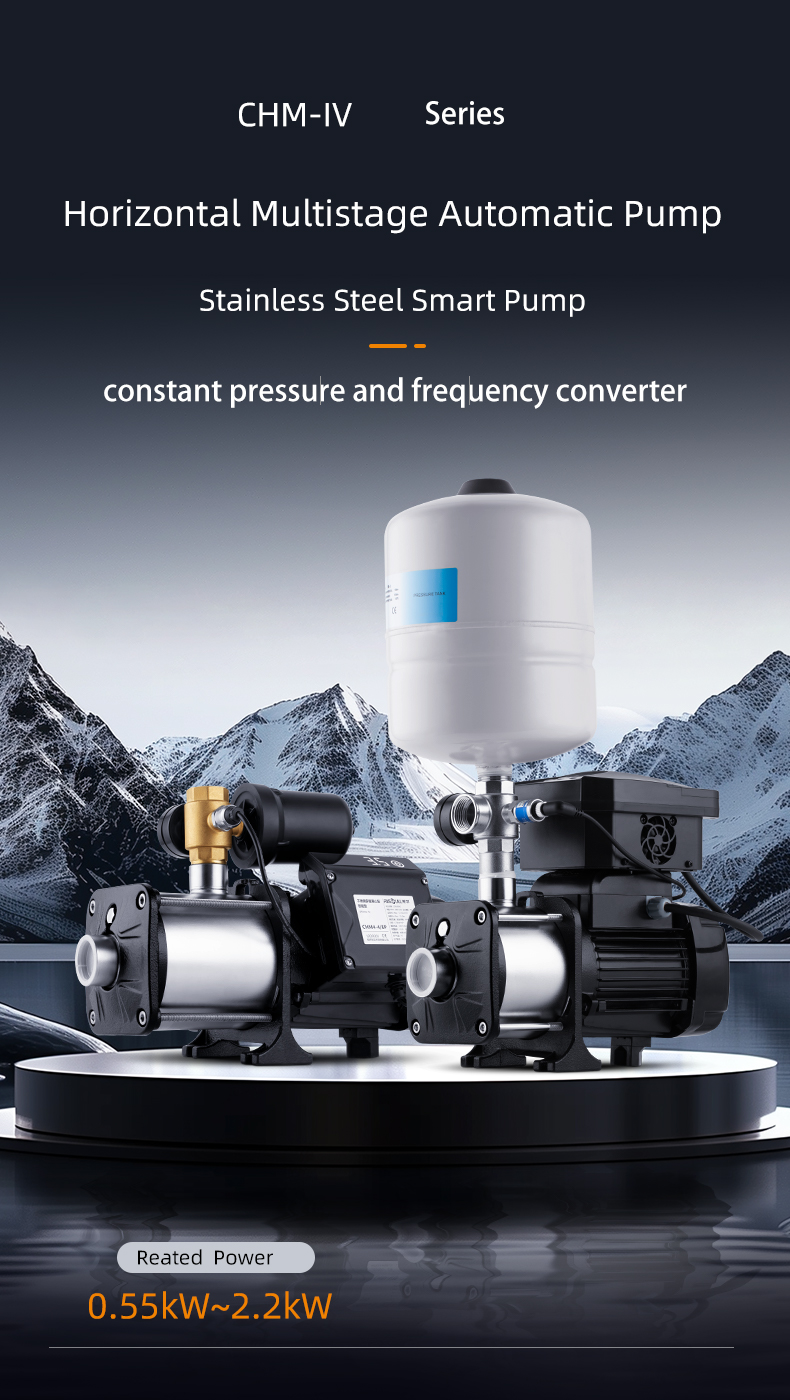

Risefull Inverter Smart Horizontal Stainless Steel Multistage Centrifugal Pump 8m³/h Rated Flow

Product Description Performance Curve ITEM NO.Power(kW)Max Flow(m³/h)Max Head(m)RatedFlow@HeadImpellerCHM2-4/IV0.554.5402m³/h@32m4CHM2-5/IV0.654.6502m³/h@40m5CHM2-6/IV0.754.6602m³/h@47m6CHM2-7/IV0.94.6702m³/h@57m7 Working Condition 1. Liquid Temperature: -15~105°c2. ......Keywords:Risefull Inverter Smart Horizontal Stainless Steel Multistage Centrifugal Pump 8m³/h Rated Flow - Buy Stainless Steel Centrifugal Pump horizontal Centrifugal Pump industry And Water Boosting industry Stainless Steel Centrifugal Pump stainless Steel Impeller Pump Low Noise Centrifugal Pump inverter Pump Constant Pressure Stainless Steel Centrifugal Pump Impeller Horizontal Multistage Centrifugal Pump I multistage Stainless Steel Pump smart Inverter Horizontal Pump risefull Rate Product on Fujian Risefull Pump Co., Ltd.

Product Description

Performance Curve

ITEM NO.	Power (kW)	Max Flow (m³/h)	Max Head (m)	Rated Flow@Head	Impeller
CHM2-4/IV	0.55	4.5	40	2m³/h@32m	4
CHM2-5/IV	0.65	4.6	50	2m³/h@40m	5
CHM2-6/IV	0.75	4.6	60	2m³/h@47m	6
CHM2-7/IV	0.9	4.6	70	2m³/h@57m	7

Risefull Inverter Smart Horizontal Stainless Steel Multistage Centrifugal Pump 8m³/h Rated Flow

Working Condition

1. Liquid Temperature: -15~105°c

2. Maximum Ambient Temperature: +45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

l Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)

l Antifreeze Liquid (Main component: glycol)

l Mild corrosive liquid (PH 5- 9)

l Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)

5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.
