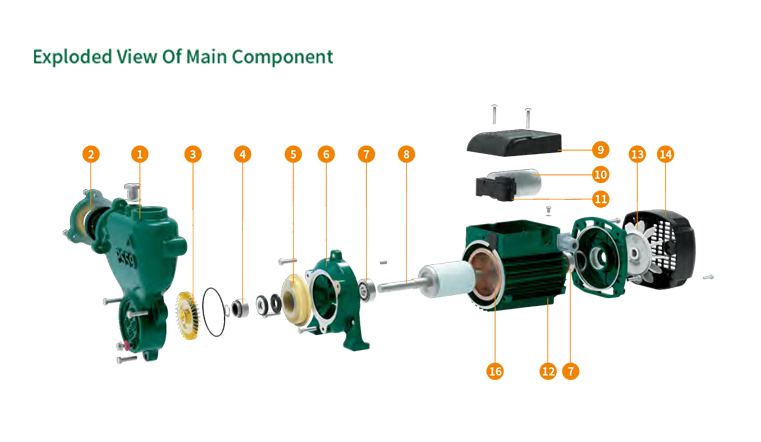

List of Main Component
|
||
| Θ Standard Configuration Ο Optional Configuration | ||
| NO. | Component | Specification/Construction Characteristics |
| 1 | PUMP BODY | Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
| 2 | Inlet Flange |
Aluminum ADC12, Rubber Check-valve inside(EPDM) |
| 2 | IMPELLER |
Θ Brass(H57%+) Ο Stainless Steel SUS304 |
| 3 | Mechanical Seal |
Θ 301 Type(Karbate Impervious Graphite+Ceramic) Special Construction Stand For Start-stop Frequently) |
| 4 | Bracket Plate |
Θ PPO(High Temperature Resistant For 150℃) Ο Precision Casting SUS304 Ο Brass(H57%+) |
| 5 | Bracket | Aluminum ADC12 |
| 6 | Ball Bearings | Θ Standard Type Ο C&U Ο TPI(Taiwan) |
| 7 | Motor Shaft | Θ SUS410(2CR13) Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
| 8 | Terminal Box | Plastic ABS |
| 9 | Terminal Board | Flame Retarding PBT |
| 10 | Capacitor |
Θ CBB60 Plastic Shell Capacitor Ο CBB65 Explosion-proof Capacitor Ο 450VL@220-240V Motor Ο 300VL@110-127VMotor |
| 11 | Motor Housing | Aluminum ADC12 |
| 12 | Fan | Θ Plastic PP Ο Nylon PA6 |
| 13 | Fan Cover | Plastic PP |
| 14 | Plug Cord | Θ 3 Core Testing Cable Ο Customized Cable Plug |
| 15 | Motor |
Θ Standard Copper Wire Ο High Efficiency Motor Ο Economical Motor Ο 3-Phase Motor Ο Customized 60 HZ Motor |
Risefull has owned advanced production and testing machine, such as automatic winding machine, drill-tap machine, precision CNC machine, powder coating line, quick pack machine, electrical safety testing machine and performance testing bench.
According to the requirements of ISO9001 quality management system, with the help of ERP information management system, strictly implement the incoming quality control, input process quality control, final quality control to ensure the quality.
