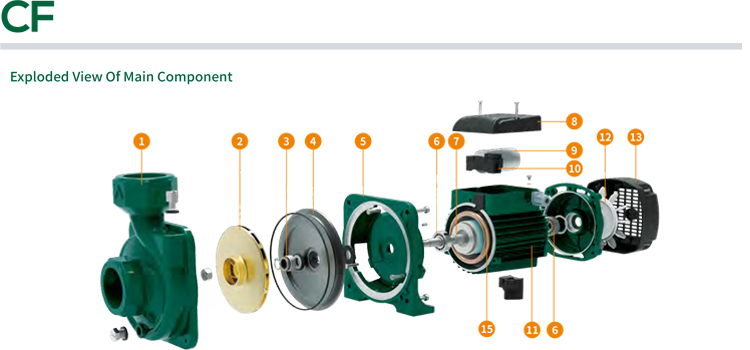

| List of Main Component | ||
| ΘStandard Configuration Ο Optional Configuration | ||
| Component | Specification/Construction Characteristics | |
| 1 | PUMP BODY | Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
| 2 | IMPELLER |
ΘBrass(H58%+) Ο PPO(High Temperature Resistant for 150℃) Ο Stainless Steel(SUS304 Stamping & Welding) |
| 3 | Mechanical Seal | Ο 301 Type(Karbate Impervious Graphite+Ceramic) Ο CN Type(Karbate Impervious Graphite+Ceramic, Special Construction Stand For Start-stop Frequently) Θ14DIN Type(Furan Impregnation Graphite+SIC,Use Life 25,000+ Hours) |
| 4 | Bracket Plate | Θ Cast Iron HT200,Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
| 5 | Bracket | Cast Iron HT200 |
| 6 | Ball Bearings | ΟStandard Type Ο C&U Θ TPI(Taiwan) |
| 7 | Motor Shaft | Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
| 8 | Terminal Box | Plastic ABS |
| 9 | Capacitor |
Θ CBB60 Plastic Shell Capacitor Ο CBB65 Explosion-proof Capacitor Ο 450VL@220-240V Motor Ο 300VL@110-127VMotor |
| 10 | Terminal Board | Flame Retarding PBT |
| 11 | Motor Housing | Aluminum ADC12 |
| 12 | Fan | Ο Plastic PP Θ Nylon PA6 |
| 13 | Fan Cover | Plastic PP |
| 14 | Plug Cord | Θ 3 Core Testing Cable Ο Customized Cable Plug |
| 15 | Motor |
Ο Standard Copper Wire Θ High Efficiency Motor Ο Economical Motor Ο 3-Phase Motor Ο Customized 60 HZ Motor |
How to choose the right products?
You can provide us your detail information.
Do you accept OEM?
Of course, we will make suitable products for you according to your requirements
What is the delivery time?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
What is the equipment warranty?
All the equipment from my factory have one year warranty.
How to use the equipment ?
We will provide detailed illustrations to you.
