Accessory Part,Household,Industrial pump,Other Pump

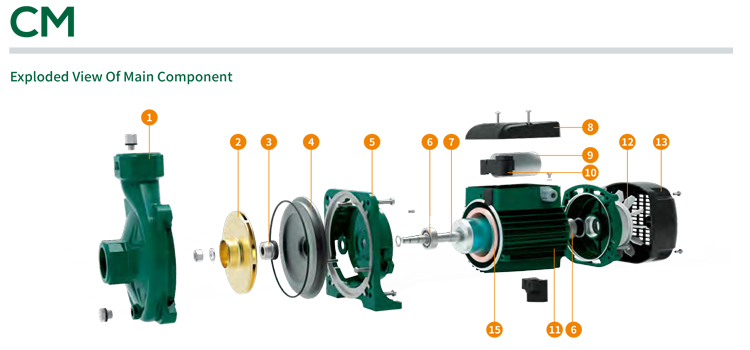

| List of Main Component | ||
| ΘStandard Configuration Ο Optional Configuration | ||
| Component | Specification/Construction Characteristics | |
| 1 | PUMP BODY | Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
| 2 | IMPELLER |
ΘBrass(H58%+) Ο PPO(High Temperature Resistant for 150℃) Ο Stainless Steel(SUS304 Stamping & Welding) |
| 3 | Mechanical Seal | Ο 301 Type(Karbate Impervious Graphite+Ceramic) Ο CN Type(Karbate Impervious Graphite+Ceramic, Special Construction Stand For Start-stop Frequently) Θ14DIN Type(Furan Impregnation Graphite+SIC,Use Life 25,000+ Hours) |
| 4 | Bracket Plate | Θ Cast Iron HT200,Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours) |
| 5 | Bracket | Cast Iron HT200 |
| 6 | Ball Bearings | ΟStandard Type Ο C&U Θ TPI(Taiwan) |
| 7 | Motor Shaft | Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side) |
| 8 | Terminal Box | Plastic ABS |
| 9 | Capacitor |
Θ CBB60 Plastic Shell Capacitor Ο CBB65 Explosion-proof Capacitor Ο 450VL@220-240V Motor Ο 300VL@110-127VMotor |
| 10 | Terminal Board | Flame Retarding PBT |
| 11 | Motor Housing | Aluminum ADC12 |
| 12 | Fan | Ο Plastic PP Θ Nylon PA6 |
| 13 | Fan Cover | Plastic PP |
| 14 | Plug Cord | Θ 3 Core Testing Cable Ο Customized Cable Plug |
| 15 | Motor |
Ο Standard Copper Wire Θ High Efficiency Motor Ο Economical Motor Ο 3-Phase Motor Ο Customized 60 HZ Motor |
More Choice of Risefull Pump
