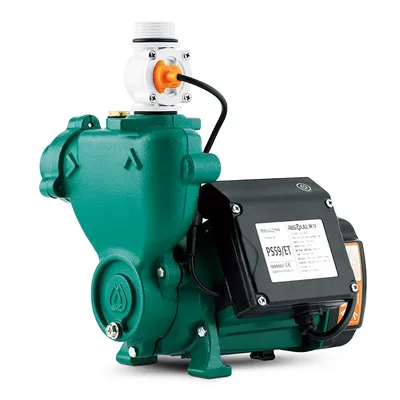

Risefull Household Booster Smart Premium Electronic Timing Controlled Automatic Self-Priming Pumps

Basic Info.Model NO.PS59/ET/PS60/ET/PS65/ET/PS70/ETAfter-sales Service1 YearWarranty1 YearMax.Head30-50mMax.Capacity30L/Min-70L/MinDriving TypeMotorMaterialCast IronStructureSingle-stage PumpAssemblyBooster PumpPowerElectricStart UpElectric PumpTypeSelf-Priming Peripheral PumpApplicationClarified Wa......Keywords:Risefull Household Booster Smart Premium Electronic Timing Controlled Automatic Self-Priming Pumps, Water Tower Filling, Automatic Water Pump

Product Description

Basic Info.

Model NO.

PS59/ET/PS60/ET/PS65/ET/PS70/ET

After-sales Service

1 Year

Warranty

1 Year

Max.Head

30-50m

Max.Capacity

30L/Min-70L/Min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Booster Pump

Power

Electric

Start Up

Electric Pump

Type

Self-Priming Peripheral Pump

Application

Clarified Water Pump

Performance

Automatic Pump

Theory

Vortex Pump

Product Style

Smart Self-Priming Peripheral Pump

Pump Body

Cast Iron with Powder Coating Color

Bracket

Aluminium Bracket with PPO Insert

Impeller

Brass Impeller

Valve

Inner Valve

Shaft

S.S 304

Brand

Risefull

Certification

MOQ

100 PCS

Inlet/Outlet

G1xg1

Trademark

Risefull

Transport Package

Foam+Color Box

Origin

Ningde China

HS Code

8413709990

Product Description

Pump
>> Pump Body: cast iron & with eletro-coating and powder coating color
>> Bracket Cover:Aluminium bracket with PPO insert
>> Impeller: brass impeller
>> Mechnical Seal: carbon / ceramic / Stainless Steel

Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding or aluminium winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> SUS410 shaft

Working Range
>> Liquid: clean liquids without suspended solids, non-aggressive
>> Liquid temperature: -10ºC and +100ºC
>> Ambient temperature up to +40ºC
>> Max. working pressure 10 bar
>> Continous service S1
>> Insulation: B
>> Protection: IP44

Application
>> Pumping water from water pipe to roof tower.
>> Pumping water from well to roof tower.

Flow Switch
>> Tubine water flow sensor
>> Hall sensor unit

Detailed Photos

Performance Data

Item No.	Power	Max Flow	Max Head	Rated Point	Water Source	Sediment %
PS59/ET/PS59AE/ET	0.33KW/0.45HP	36L/Min	32M	16M@20L	Tap Water	<5%
PS60/ET/PS60AE/ET	0.37KW/0.5HP	42L/Min	36M	16M@25L	Tap Water	<5%
PS65/ET/PS65AE/ET	0.55KW/0.75HP	55L/Min	42M	20M@32L	Tap Water	<5%
PS70/ET/PS70AE/ET	0.75KW/1.0HP	68L/Min	48M	24M@38L	Tap Water	<5%

Packaging Information

Model	Dimension (LXWXH mm)	N.W (kg)	G.W (kg)
PS59/ET/PS59AE/ET	280x220x260	6.4	6.7
PS60/ET/PS60AE/ET	280x220x260	6.9	7.7
PS65/ET/PS65AE/ET	312x220x285	9.4	10.0
PS70/ET/PS70AE/ET	312x220x285	11.5	12.0

Company Profile

FAQ

How to choose the right products?
You can provide us your detail information.
Do you accept OEM?
Of course, we will make suitable products for you according to your requirements
What is the delivery time?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
What is the equipment warranty?
All the equipment from my factory have one year warranty.
How about the MOQ of customized brand ?
--If need embossed logo on the pump body ,it is required 1000PCS .
--If only need logo on the packing ,it is required 500PCS.
